Περιγραφή
-

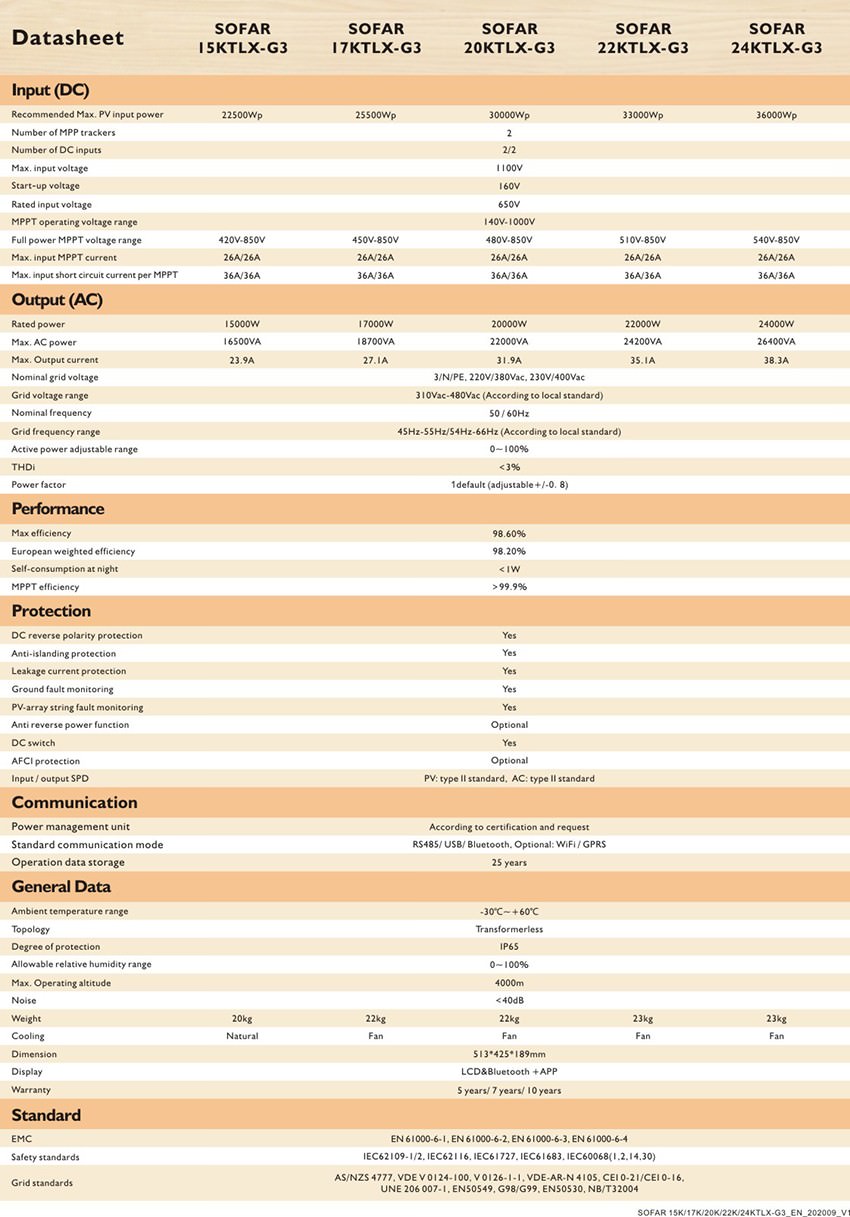

Recommended Max. PV Input Power 30000Wp Number of MPP trackers 2 Number of DC inputs 2/2 Max. Input voltage 1100V Start-up voltage 160V Rated input voltage 650V MPPT operating voltage range 140V-1000V Full power MPPT voltage range 480V-850V Max. Input MPPT current 26A/26A Maximum DC input short circuit current per MPPT 36A/36A OUTPUT (AC) Rated power 20000W Max. AC power 22000VA Max. Output current 31.9A Nominal grid voltage 3/N/PE, 220V/380Vac, 230V/400Vac Grid voltage range 310Vac-480Vac (According to local standard) Nominal frequency 50Hz/60Hz Grid frequency range 45Hz-55Hz/54Hz-66Hz (According to local standard) Active power adjustable range 0~100% THDi <3% Power factor 1 default ( adjustable +/- 0.8 ) Performance Max efficiency 98.60% European weighted efficiency 98.20% Self-consumption at night <1W MPPT efficiency >99.9% Protection DC reverse polarity protection Yes Anti-islanding Protection Yes Leaking Current Protection Yes Ground Fault Monitoring Yes PV-array String Fault Monitoring Yes Anti Reverse Power Function Optional DC switch Yes AFCI Protection Optional Input / Output SPD PV: type II standard, AC: type II standard Communication Power management unit According to certification & request Standard communication mode RS485 / USB / Bluetooth, Optional: Wifi / GPRS Operation data storage 25 years General Data Ambient temperature range -30° ~ +60° Topology Transformerless Degree of protection IP65 Allowable relative humidity range 0~100% Max. Operating altitude 4000m Noise ≤40dB Weight 22kg Cooling Fan Dimension 520*430*189mm Display LCD & BLuetooth + APP
