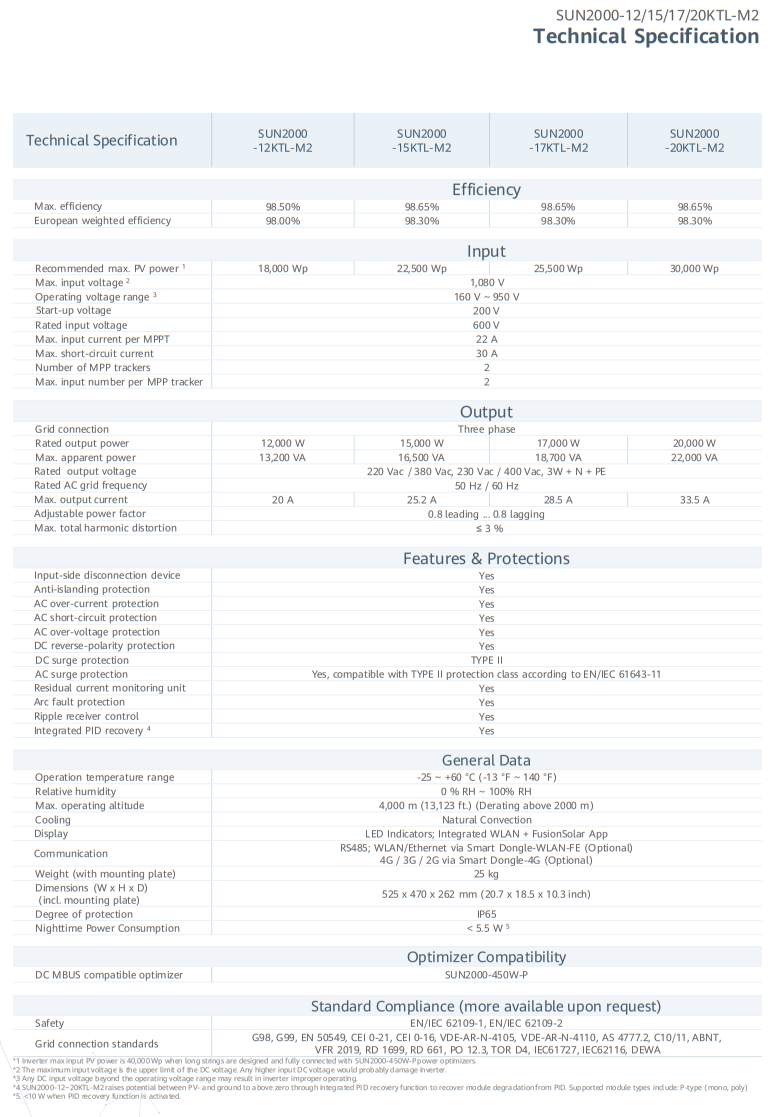

Περιγραφή
- Recommended max. PV input power: 18000 Wp
- Max. input voltage: 1080 V
- Number of MPP trackers / Input number per MPP tracker: 2 / 2
- Rated output power: 12 kW
- Rated output voltage: 220 Vac / 380 Vac, 230 Vac / 400 Vac, 3W + N + PE
- Max. output current: 20 A
- DC and AC surge protection: compatible with TYPE II protection class according to EN/IEC 61643-11
- Cooling: Natural Convection
- Display: LED Indicators; Integrated WLAN + FusionSolarApp
- Degree of protection: IP65
- Weight (with mounting plate): 25 kg
- Dimension (W x H x D): 525 x 470 x 262 mm
